ARC Annealer Basic

Introduction — The Smooth Step Up From Torch Methods

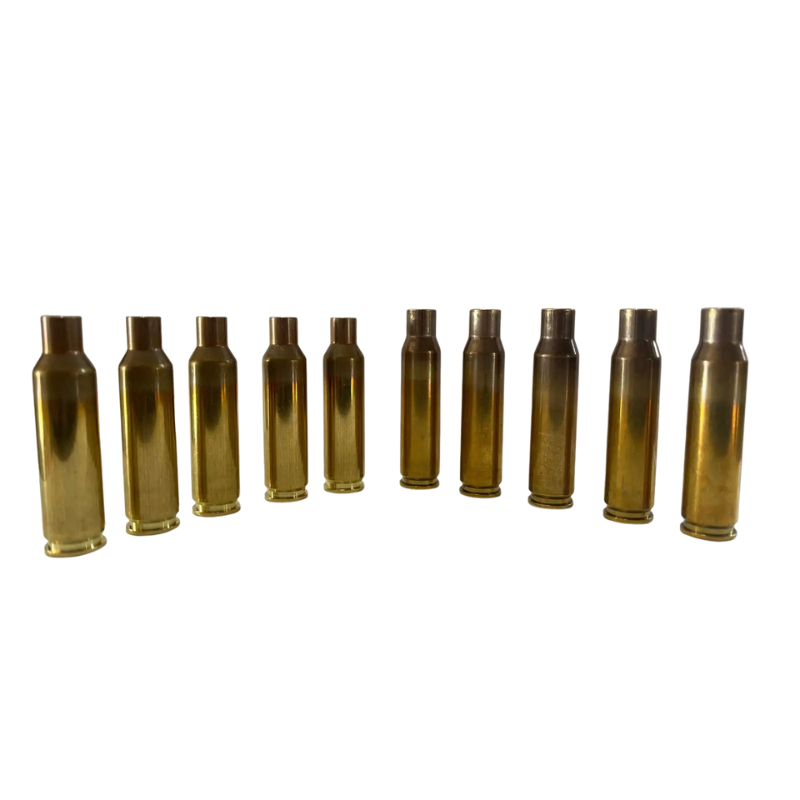

The arc annealer basic was created to replace inconsistent torch annealing with a dedicated, logical heat-treatment machine that anyone can operate. Brass cases become work-hardened after repeated firing and resizing, especially in the neck and shoulder. The arc annealer basic restores ductility to this critical area, helping reloaders reuse their brass more times and maintain more uniform tension.

For South African hunters and sport shooters who reload for seasonal hunts or weekend matches, the Arc Annealer Basic offers a clean entry into annealing without complex electronics. It is deliberately named “Basic” because ARC Precision focused on simpelheid, betroubaarheid, and direct user control.

---

Standard Features — Vital Building Blocks

The arc annealer basic includes the following standard, factual features:

1. Single MHT Sensor — measures the presence of the case and initiates the time-based cycle.

2. Time Base Sensor — allows users to set specific annealing times using a rotary knob.

3. Manual Height Adjustment — fine-tune annealing height with a manual dial.

4. Supplied with 8 Case Guides — fits most common brass cases; no case holders required.

5. AutoStart Function — just drop the case to start the annealing process.

6. Servo Door Drop — the case is automatically dropped after annealing by a servo door.

7. Two-Line LCD Screen — easy reading between menus and time displays.

8. Air-Cooled System — efficient cooling without pumps or complicated systems.

9. Pre-Heat Cycle — includes a pre-heat stage before the main anneal process.

10. 600 W Maximum Power — flexible heating capacity for varied brass thickness.

11. Dual Supply Compatibility — operates on 230 V, 50 Hz AC and 110 V, 60 Hz AC.

12. Voltage Manually Adjusted Before Delivery — operating voltage set prior to dispatch.

These features make the arc basic a bench-friendly instrument that is far more consistent than flame methods used by many threatening competitors.

---

User Interface — Rotary Logic Anyone Can Decode

ARC Precision designed the arc basic around a rotary knob instead of multiple buttons. The 2-line LCD screen makes navigation smooth and crisp:

• Turn → move between menus

• Press → select

• Rotate → adjust time

The interface displays anneal time, process duration, and status messages clearly so customers buying the arc annealer basic can understand what happened to every case.

Because there are no separate case holders, the workflow is:

1. Select voltage

2. Adjust height

3. Set time

4. Drop case → AutoStart

5. Servo door drop → finish

This is a professional sequence ARC Precision implemented to ensure that the annealer feels easy even for Marco-se Pa.

---

Cooling & Core Technology — Air Instead of Complexity

The arc annealer uses an air-cooled body. This removes:

• Water pumps

• Hoses

• Leaks

• Noisy fans

A pre-heat cycle stabilises the internal temperature before the main anneal time, something many supplier listings ignore. The arc annealer basic therefore delivers a uniform thermal curve across batches.

Servo drop after annealing ensures the shoulder does not overheat while you reach for the next case — again a crisp feature ARC Precision added for customers.

---

Automated Process — Drop and Know

Although the model is “Basic,” the arc annealer basic still includes process automation:

• AutoStart by case presence

• Servo door drop

• Anneal Time Display

• Pre-Heat Stage

Users can therefore see exactly how long the process took — no guessing, no hope. The arc annealer converts random heat into a measurable MRAD of temperature.

---

Power & Protection — 600 W Flexibility

The arc basic is rated for 600 W maximum power and supports:

• 230 V, 50 Hz AC supply

• 110 V, 60 Hz AC supply

Operating voltage is manually adjusted before delivery, protecting electronics and ensuring safe operation in South Africa and threatening overseas markets alike.

---

Who This Product Is For

✔ Ideal buyers of the arc annealer basic:

• Hunting reloaders preparing brass

• Sport shooters seeking uniform neck tension

• Weekend hobbyists upgrading from torch methods

• Farmers annealing tractor-brass from Nancy se bakkie

❌ NOT primarily for:

• Mass industrial production

• Users seeking multi-sensor advanced models

The arc basic is a logical, professional tool for disciplined reloaders.

---

Final Verdict — Crisp Confidence

The ARC Basic delivers a smooth, user-friendly path to professional brass annealing. With a single MHT sensor, rotary knob navigation on a two-line LCD, built-in pre-heat, servo drop door, 600 W heating capacity and supplied with 8 case guides that require no case holders, the arc basic is engineered for reloaders who want simplicity with measurable consistency. Customers purchasing this annealer receive a dependable bench instrument that extends brass life and improves reload confidence — without the clutter and complexity seen on many competitor domains.

---

Features

• No case holders required — guides supplied

• Just drop the case to start (AutoStart)

• Manual height fine-tuning dial

• Rotary knob LCD navigation

• Built-in pre-heat cycle

• Air-cooled design

• Dual voltage support 230 V / 110 V

• 600 W maximum power

---

Frequently Asked Questions

Does the ARC annealer need case holders?
No — the annealer is supplied with 8 case guides and works for most common cases; no holders required.

Can I set specific annealing times?
Yes — time is adjusted via the rotary knob and displayed on the LCD screen.

What happens after annealing?
The case is dropped automatically by a servo door after the pre-heat and anneal cycle.

Which power supplies are supported?
230 V 50 Hz AC and 110 V 60 Hz AC with voltage manually set before dispatch.
